Every year in Dubai, buildings without a properly installed fire sprinkler system suffer losses that a single activated sprinkler head could have prevented. A fire sprinkler system doesn’t wait for someone to pull an alarm or call the fire brigade — it activates automatically within seconds of detecting dangerous heat, discharging water directly onto the fire source before flames have a chance to spread. As a DCD-approved fire sprinkler system installation company in Dubai, Abdullah Fire Safety designs, supplies, installs, tests, and maintains all types of fire sprinkler systems — wet pipe, dry pipe, deluge, pre-action, and ESFR — for residential villas, high-rise towers, commercial buildings, hotels, hospitals, warehouses, and industrial facilities across Dubai and the UAE. Every system is engineered to NFPA 13 standards and Dubai Civil Defence regulations.
Fully compliant with UAE regulations
Licensed & experienced professionals
Round-the-clock assistance
On-site within 60 minutes

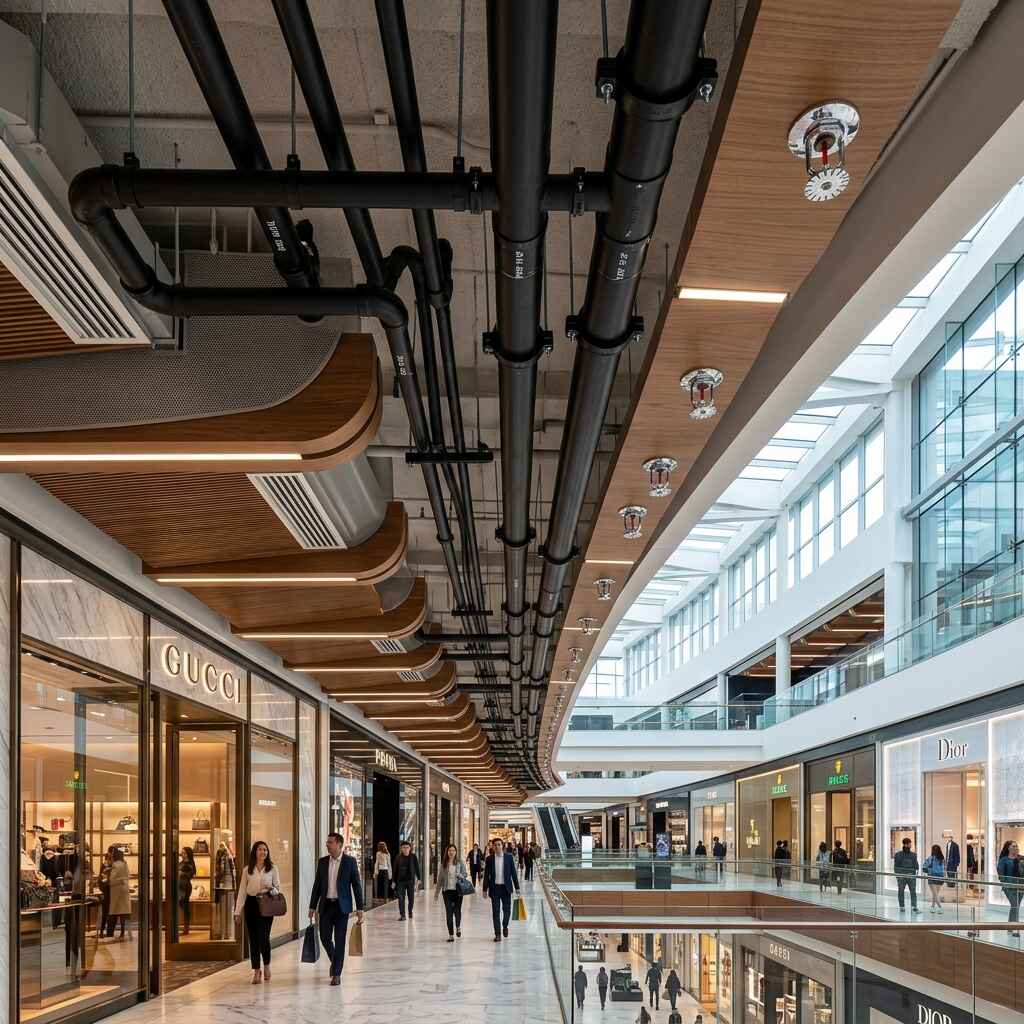

Walk into any commercial building in Dubai a mall, a hotel lobby, a hospital corridor and look up. You’ll almost certainly see a row of sprinkler heads mounted in the ceiling. Most people assume they’re all connected and that a single smoke wisp will trigger a flood. That’s actually one of the most persistent myths about fire sprinkler systems and one we clear up immediately when clients call us.
A fire sprinkler system is an automatic, water-based fire suppression network consisting of a pressurised pipe system connected to a reliable water supply, with individual sprinkler heads positioned throughout the building at calculated intervals. Each sprinkler head contains a small heat-sensitive glass bulb filled with a glycerin-based liquid that expands when the surrounding air temperature reaches a specific activation threshold typically between 57°C and 79°C for standard commercial sprinkler heads. When this bulb shatters, it releases a cap and allows pressurised water to discharge from that specific head only not all heads simultaneously.
This single-head activation design is critical: it means only the sprinkler head closest to the actual fire activates. Studies from the National Fire Protection Association (NFPA) consistently show that in 87% of reported structure fires, just one or two sprinkler heads are sufficient to control the fire completely. The result is targeted suppression, dramatically reduced water damage, and a building that remains structurally intact. Under Dubai Civil Defence (DCD) regulations and the UAE Fire & Life Safety Code of Practice, fire sprinkler systems are legally mandatory for most commercial, residential, and industrial buildings in Dubai. Specifically, any building above ground floor retail, any residential building above three storeys, any warehouse above a defined floor area, and all hotels, hospitals, and educational institutions require a DCD-approved fire sprinkler installation before they can receive their occupancy permit or trade licence. The system must be designed by a DCD-approved contractor to NFPA 13 (Standard for the Installation of Sprinkler Systems) and submitted for DCD design approval before a single pipe is laid.
All fire sprinkler systems in Dubai must be designed and installed in accordance with NFPA 13 by a DCD-approved contractor. DCD design approval, hydraulic pressure testing, and a DCD Completion Certificate are mandatory before building occupancy. Non-compliance results in fines, failed inspections, and blocked trade licences.
Not all buildings have the same fire risk. The wrong sprinkler system type can mean incomplete coverage, unnecessary water damage, or DCD non-compliance. Here’s what we install and why each type exists:
The most common fire sprinkler system installed across Dubai. Pipes are always filled with pressurised water, meaning activation is instant the moment the heat-sensitive bulb fractures, water discharges within milliseconds. No delay. No sequence of events needed. Just immediate suppression. Wet pipe systems are the simplest, most reliable, and most cost-effective sprinkler type for any building where temperatures remain above freezing which covers virtually every indoor space in Dubai.
Key specs: Operating pressure: 1.0–12.1 bar | Activation temp: 57°C–79°C | Coverage per head: 9–21m²

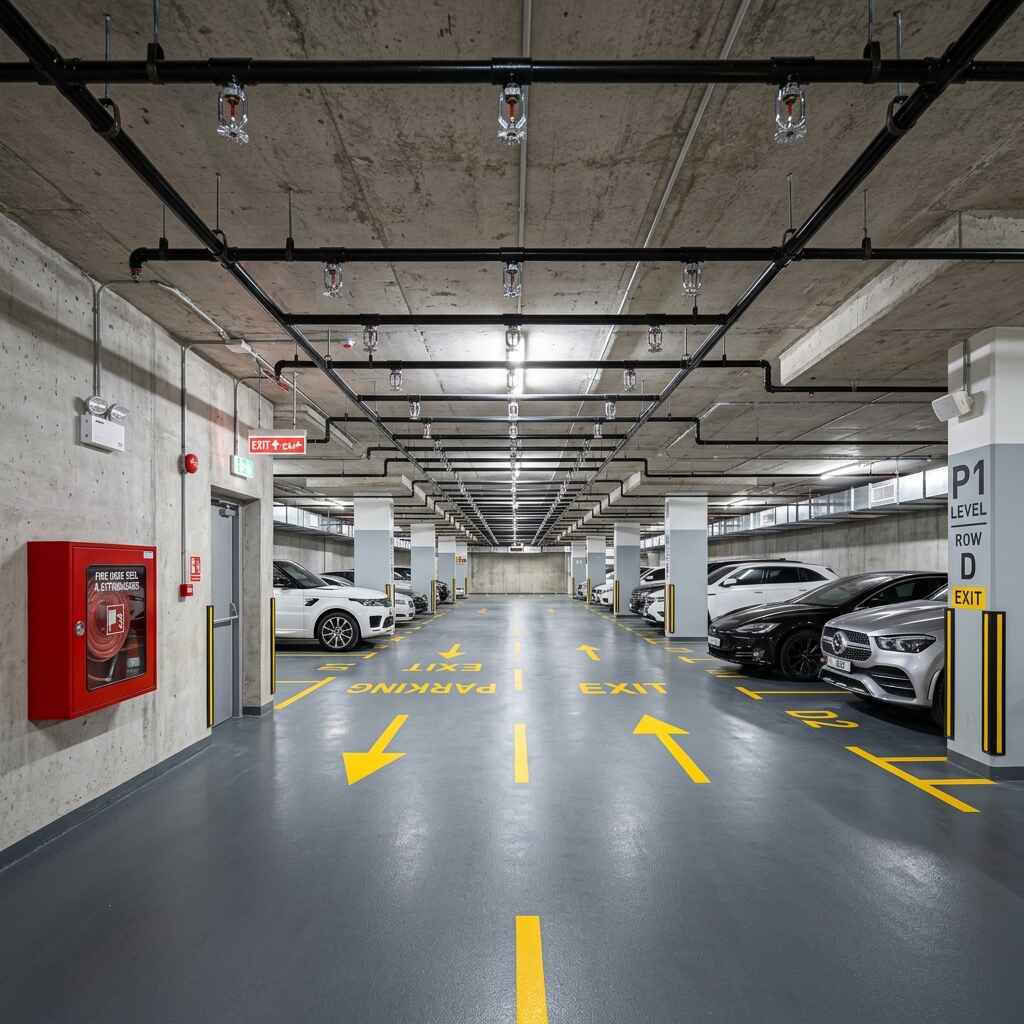

In dry pipe systems, the pipes contain pressurised air or nitrogen rather than water. When a sprinkler head activates, the air pressure drops, a dry pipe valve opens, and water floods the pipes before discharging. The delay typically 15–60 seconds makes dry pipe systems ideal for locations where water-filled pipes would freeze or corrode. In Dubai, dry pipe systems are most commonly specified for multi-level car parks, refrigerated warehouses, and exposed outdoor structures.
Deluge systems have open sprinkler heads no heat-sensitive bulb connected to a deluge valve that’s triggered by a separate fire detection system (smoke, flame, or heat detector). When the valve opens, water floods all open heads simultaneously, creating a complete water curtain over the entire protected area. The sheer volume and speed of discharge make deluge systems essential for high-hazard environments where a fire can escalate beyond a single sprinkler head’s capacity in seconds.

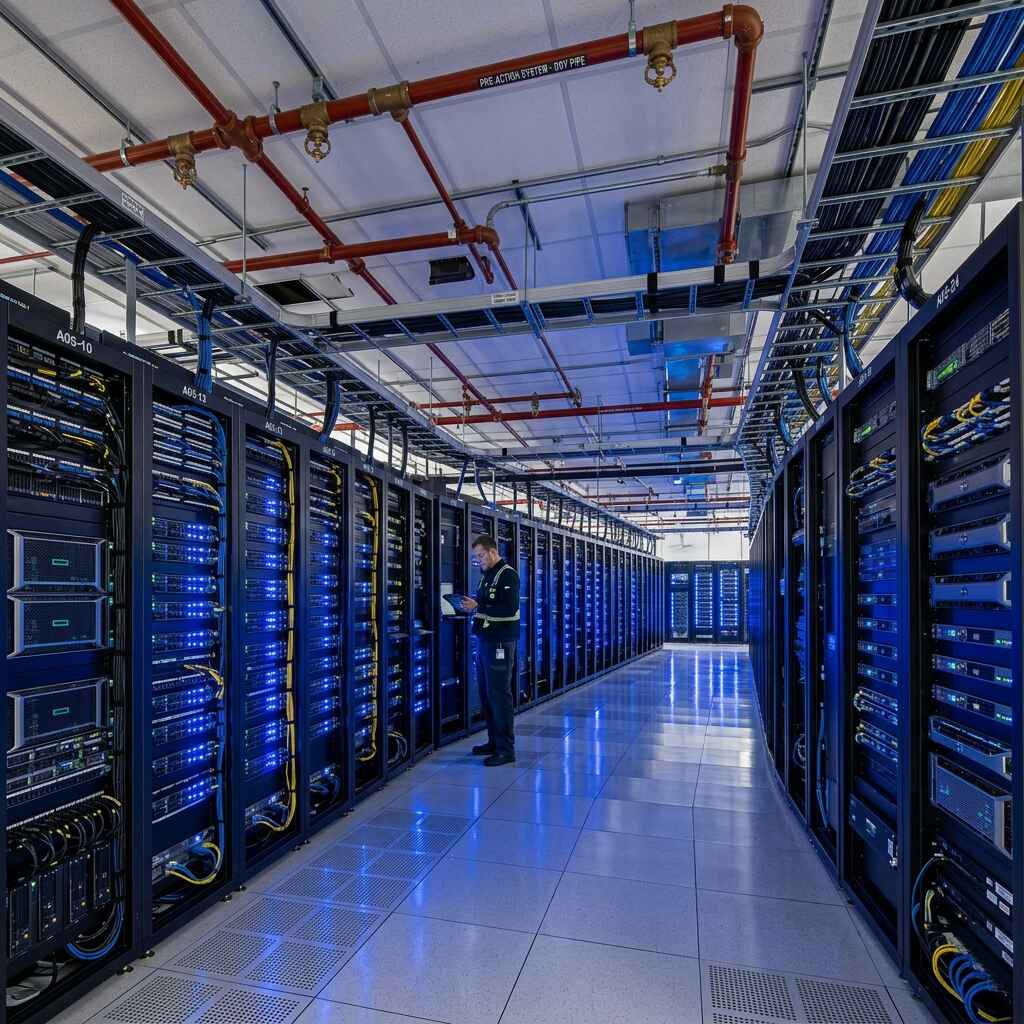

Pre-action systems combine the dry pipe concept with an additional detection step water only enters the pipes after a fire detection signal is received, and only discharges when a sprinkler head also activates. This double-lock prevents accidental discharge a critical requirement for data centres and server rooms where water damage from a false alarm would be catastrophic. Pre-action systems are increasingly specified in Dubai’s growing data centre sector.

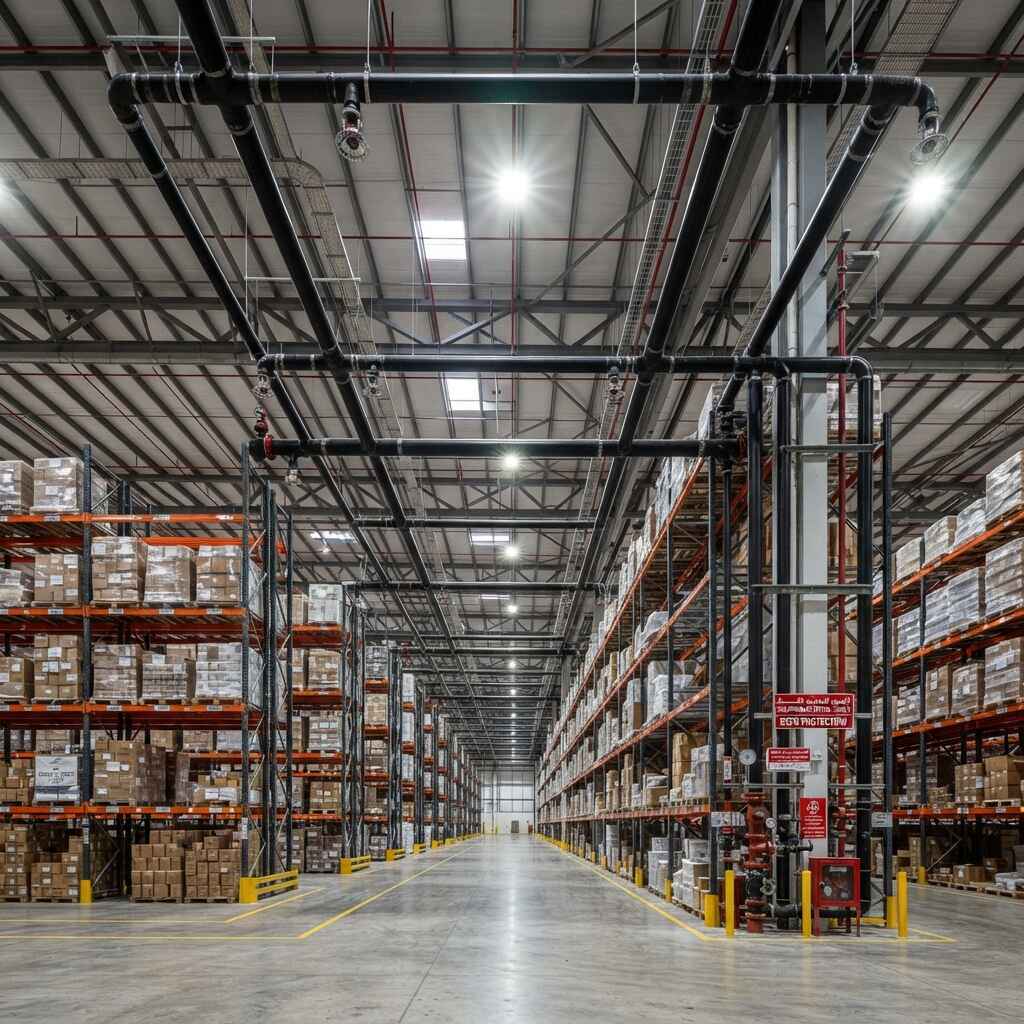

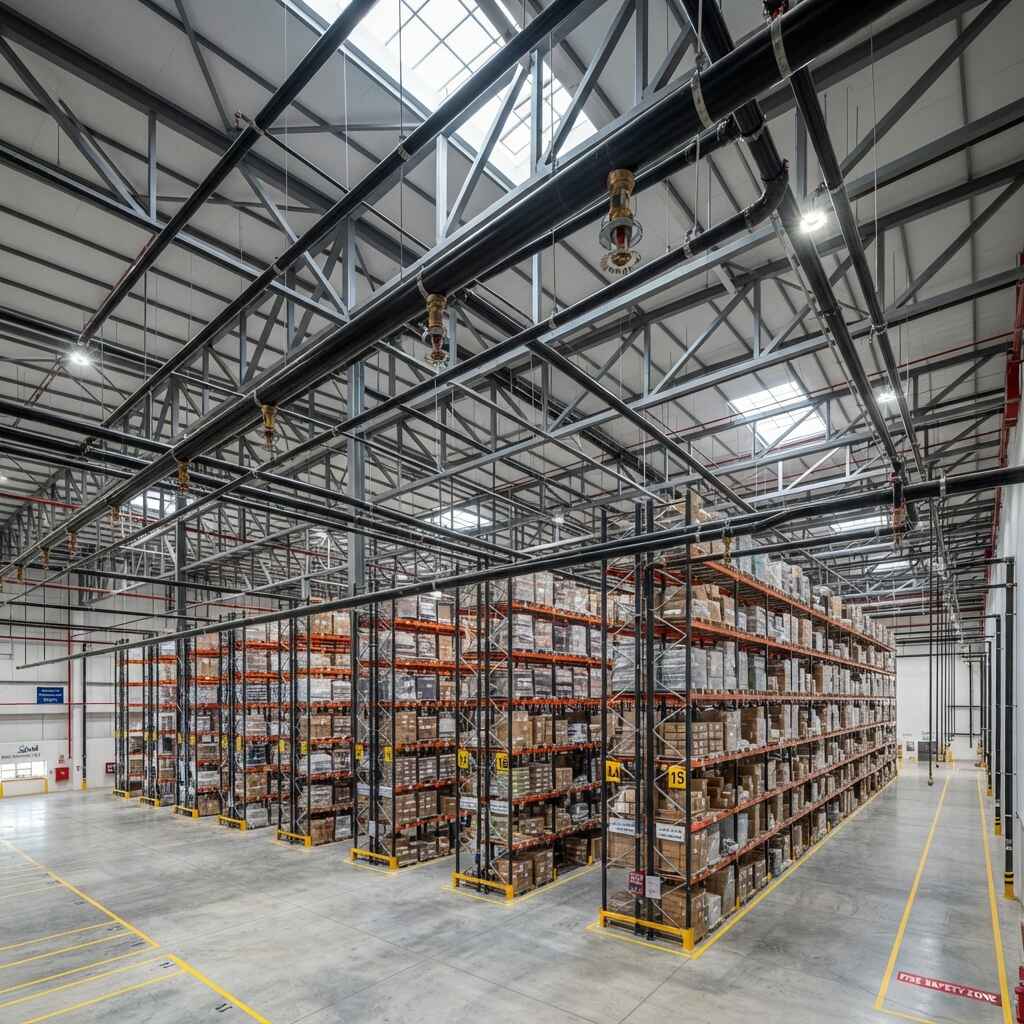

ESFR (Early Suppression Fast Response) sprinklers are a specialist type designed specifically for warehouses with high-piled storage racks reaching 10 metres or more. Standard sprinklers cannot suppress a fire in high-rack storage fast enough because flames travel upward faster than water can reach the seat of the fire. ESFR heads discharge at much higher flow rates directly at the fire source, providing suppression at the rack level rather than relying on water falling from the ceiling. In Dubai’s growing logistics and warehouse sector along the Sheikh Mohammed Bin Zayed Road corridor, ESFR systems are increasingly specified by DCD for new warehouse builds.
| Feature | Wet Pipe | Dry Pipe | Deluge | Pre-Action | ESFR |
|---|---|---|---|---|---|
|
Activation speed |
Instant |
15–60 sec |
Instant (all heads) |
Two-step |
Fast |
|
False discharge risk |
Low |
Low |
Requires detection |
Very Low |
Low |
|
Best environment |
General buildings |
High hazard |
Cold/parking |
Sensitive areas |
Warehouses |
|
Water damage risk |
Low |
Low |
High (all heads) |
Very Low |
Low |
|
Cost |
✅ Lowest |
Moderate |
Moderate |
Higher |
Higher |
|
DCD common use |
✅ Most common |
Car parks |
Industrial |
Data centres |
Warehouses |
Project Compleated
Years of UAE Exprience
Emergency Support
DCD Compliance
How It Works
Understanding the sequence of operation helps you see why CBS is far more reliable than any decentralised alternative — and why DCD engineers check each of these stages during inspection.
A fire ignites — whether from an electrical fault, a kitchen incident, or any ignition source. In the initial seconds, the fire produces heat that rises toward the ceiling through convection. Most people are unaware the fire has started.

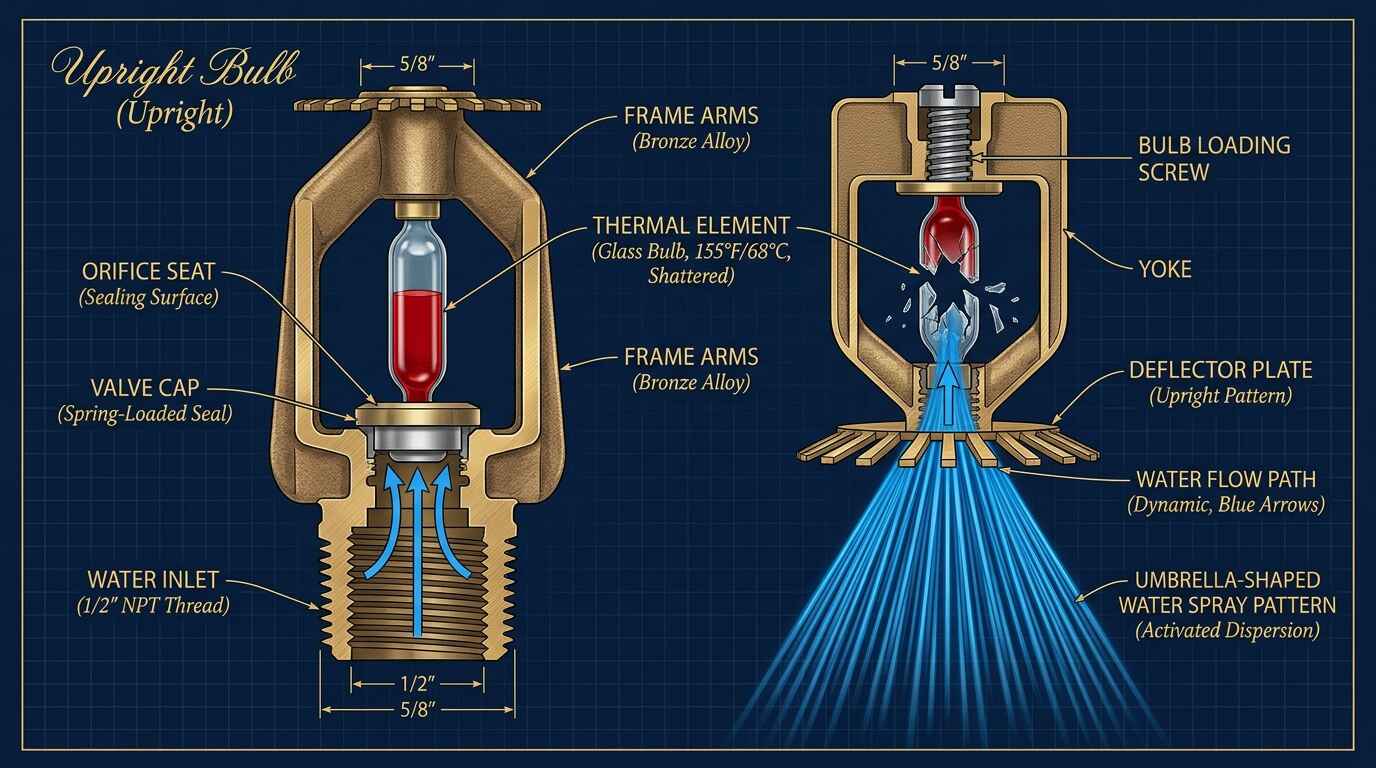

The glycerin-filled glass bulb inside the sprinkler head expands as it absorbs heat. When the liquid reaches the activation temperature, internal pressure exceeds the bulb's structural limit it shatters. This releases the deflector assembly and exposes the water orifice.
As the fire grows, the hot air column rises and accumulates at ceiling level. The sprinkler head nearest the fire begins to experience elevated temperatures. Standard response heads activate between 57°C and 79°C quick response heads at 57°C specifically for life safety applications in residential buildings.
Pressurised water from the pipe network immediately discharges through the open orifice and strikes the deflector plate, breaking the stream into a fine spray pattern that covers the calculated protection area beneath the head typically 9–21m² depending on head type and spacing.

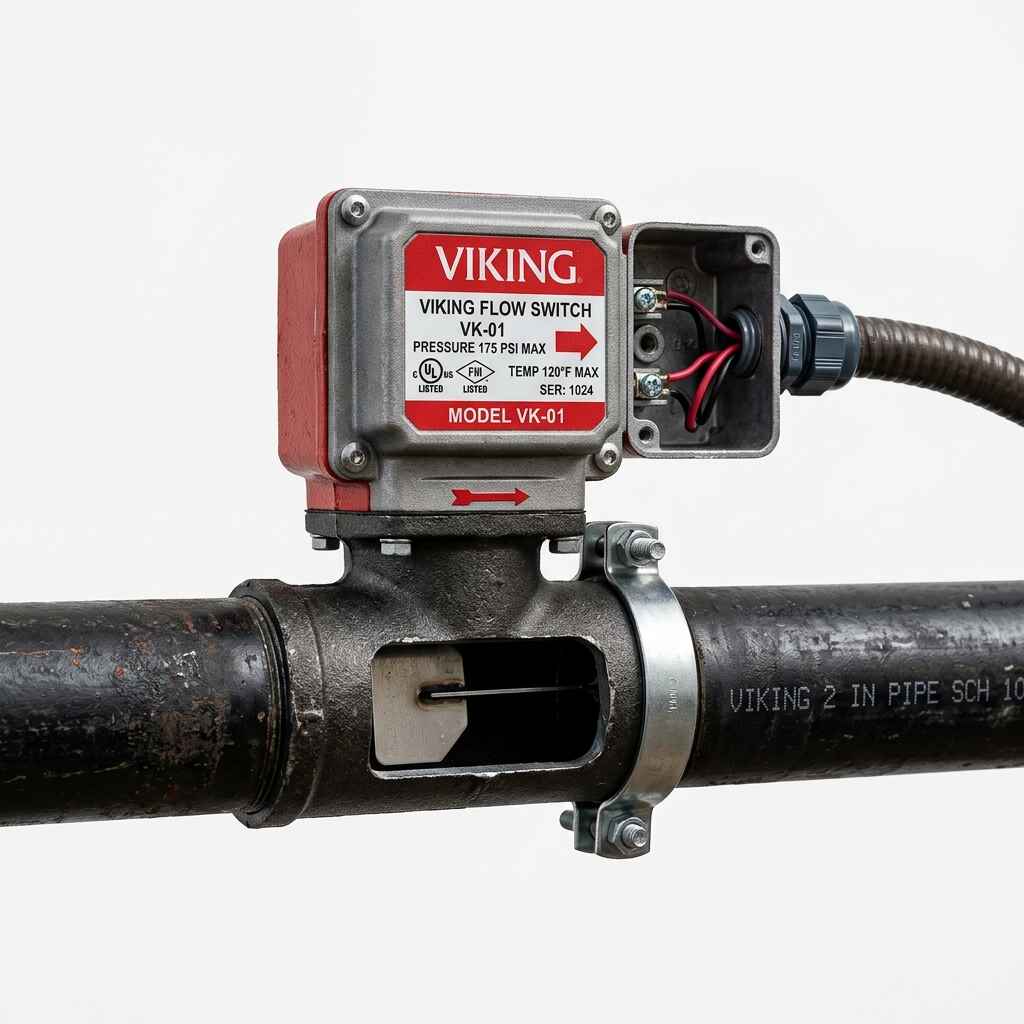

As water flows through the activated branch, a flow switch in the pipe detects the movement and sends a signal to the fire alarm control panel. Alarm bells, strobes, and in integrated systems evacuation announcements activate. The fire brigade is automatically notified in Hassantuk-connected buildings.
In the majority of cases, a single sprinkler head controls or extinguishes the fire before the fire brigade arrives. The water supply continues until the system is manually isolated by a trained engineer. Our 24/7 emergency team then attends to reset, assess, and recommission the system.
A fire sprinkler system is only as reliable as its weakest component. Here’s every major component we supply and install and why specification quality matters:

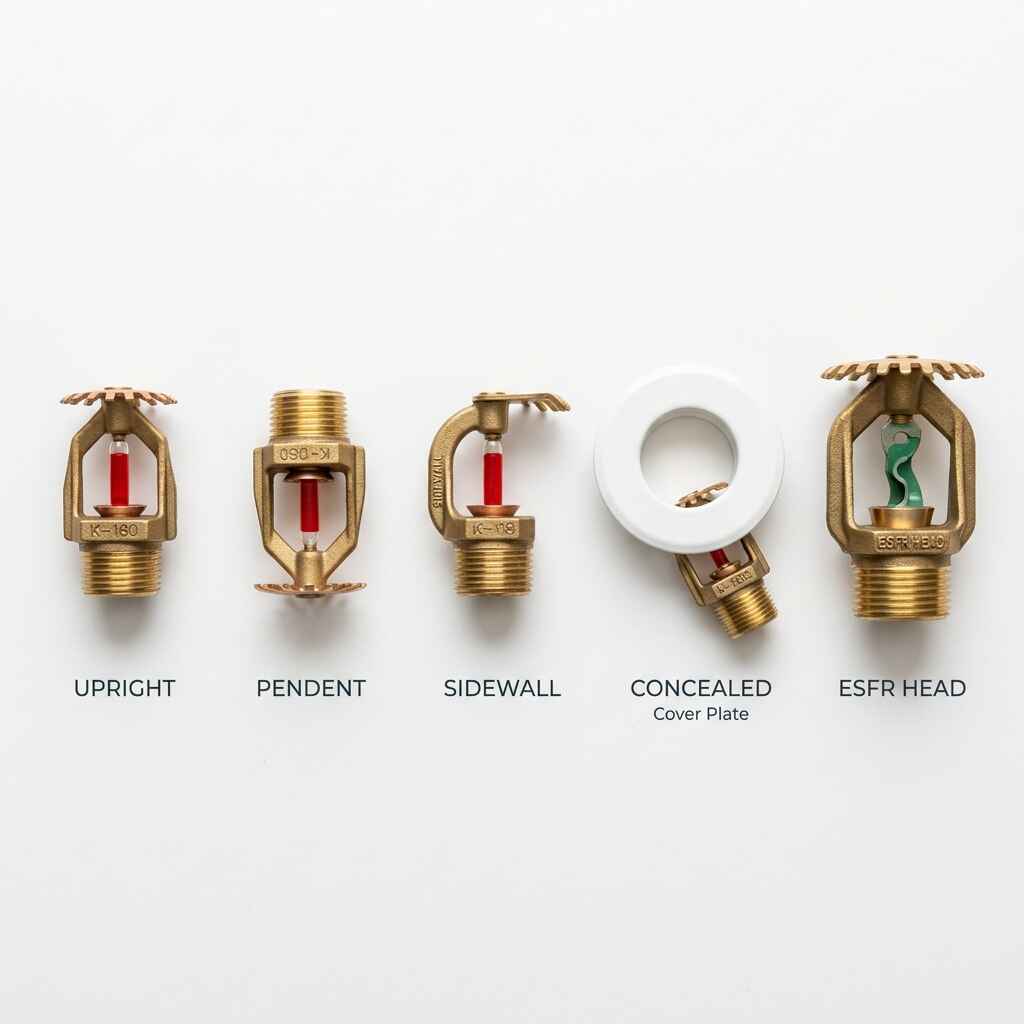

The visible component you see in ceilings. We supply DCD-listed heads from Tyco, Viking, Victaulic, and Reliable Automatic Sprinkler. Types: upright, pendent, sidewall, concealed, ESFR. Key spec: Response Time Index (RTI) standard (>80), fast response (≤50), extended coverage. RTI determines how quickly the head responds to rising temperatures critical for life safety applications in hotels and residential buildings where DCD requires quick response heads

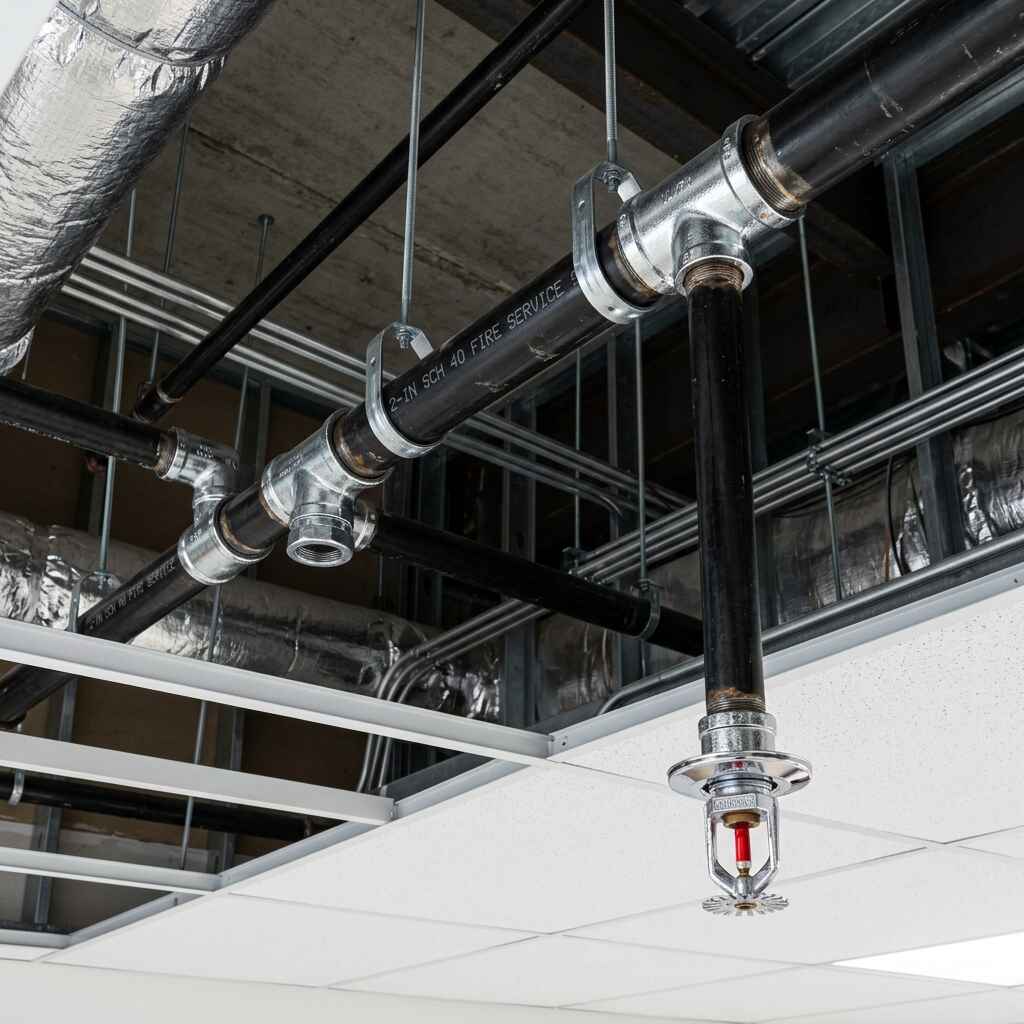

The backbone of the system. We install Schedule 40 black steel pipe or galvanised steel pipe — all hydraulically sized to ensure adequate flow and pressure at the most remote sprinkler head under fire conditions. Incorrect pipe sizing is the most common failure in poorly designed systems — our hydraulic calculations follow NFPA 13 Appendix B standards, verified by our senior engineer before any DCD submission.

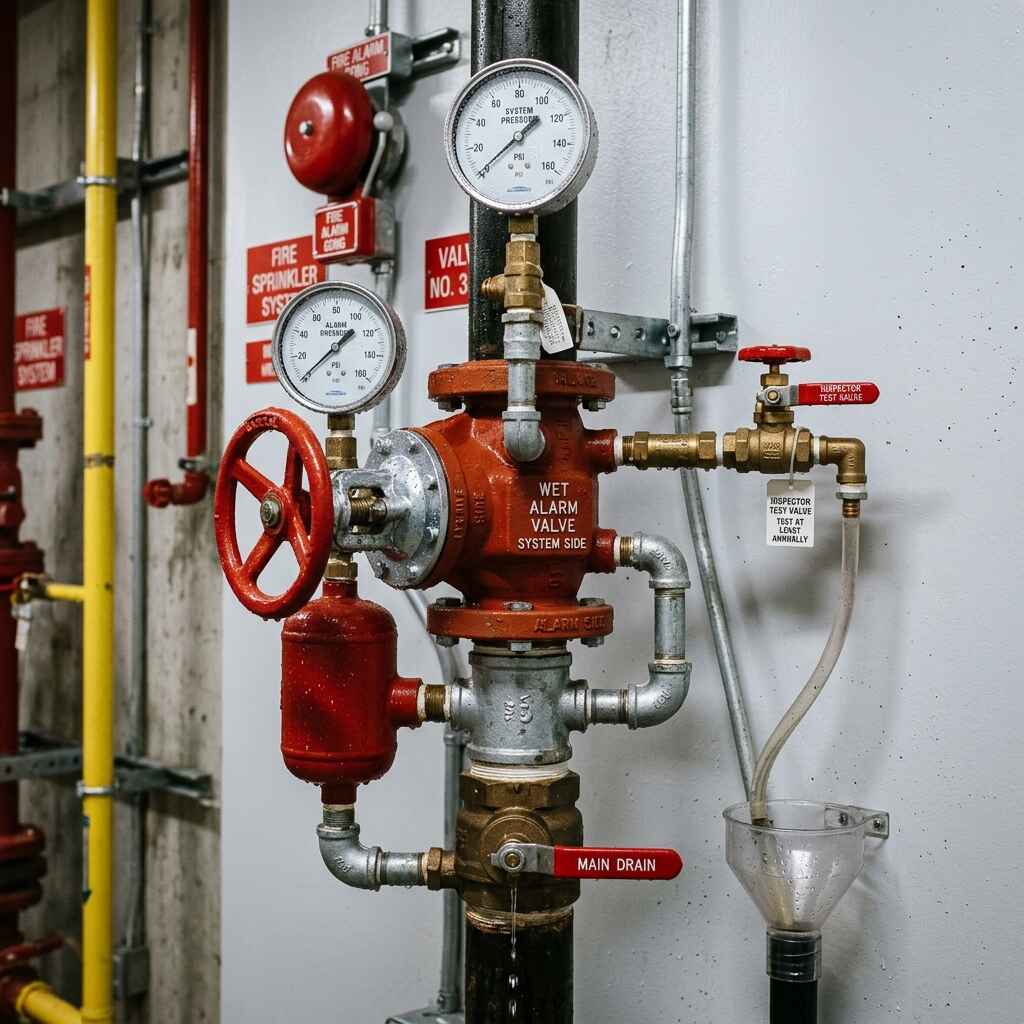

The most critical control component of the system. The alarm valve allows water to flow only when a head activates, prevents false alarms from minor pressure fluctuations, and connects the water motor alarm for audible fire alerting. We install wet alarm valve stations, dry pipe valves, deluge valves, and pre-action valve skids — all from Tyco, Viking, or Watts, all DCD-listed.
The visible component you see in ceilings. We supply DCD-listed heads from Tyco, Viking, Victaulic, and Reliable Automatic Sprinkler. Types: upright, pendent, sidewall, concealed, ESFR. Key spec: Response Time Index (RTI) standard (>80), fast response (≤50), extended coverage. RTI determines how quickly the head responds to rising temperatures critical for life safety applications in hotels and residential buildings where DCD requires quick response heads

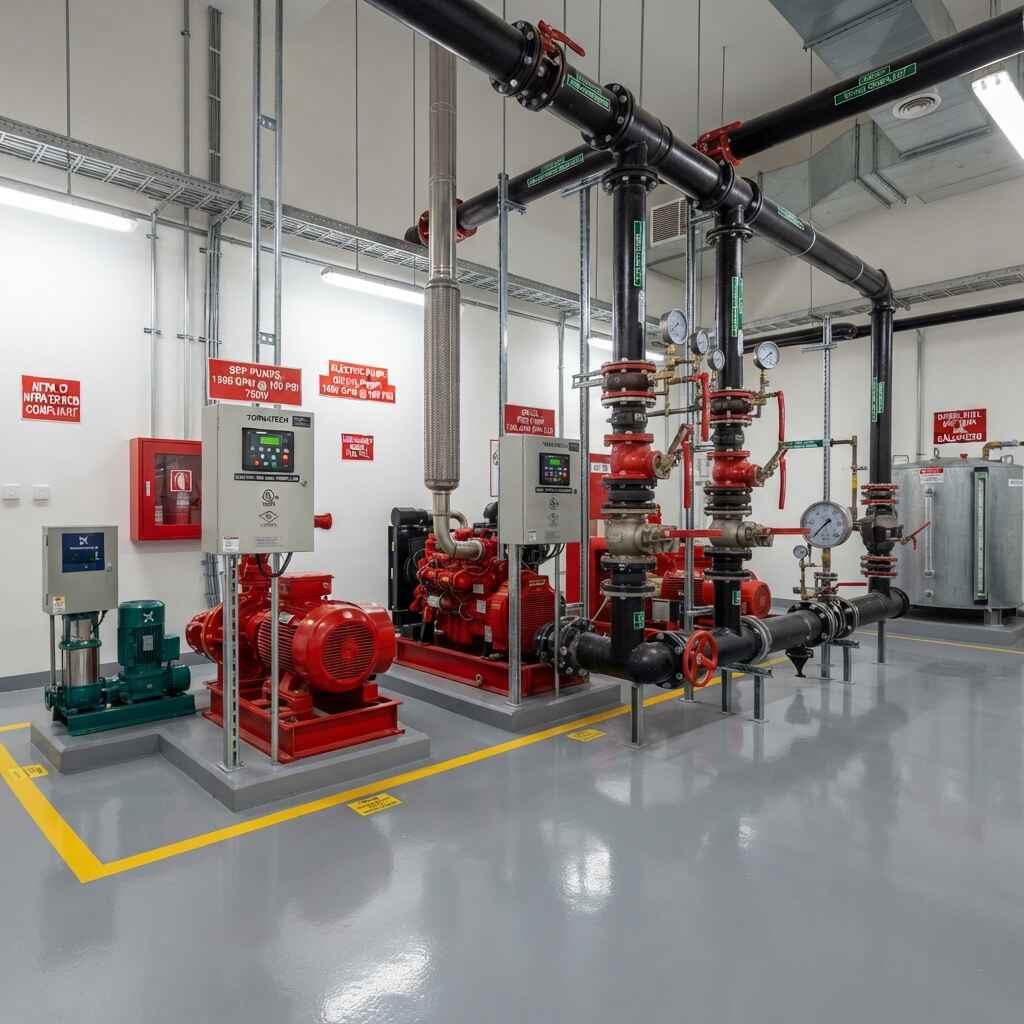

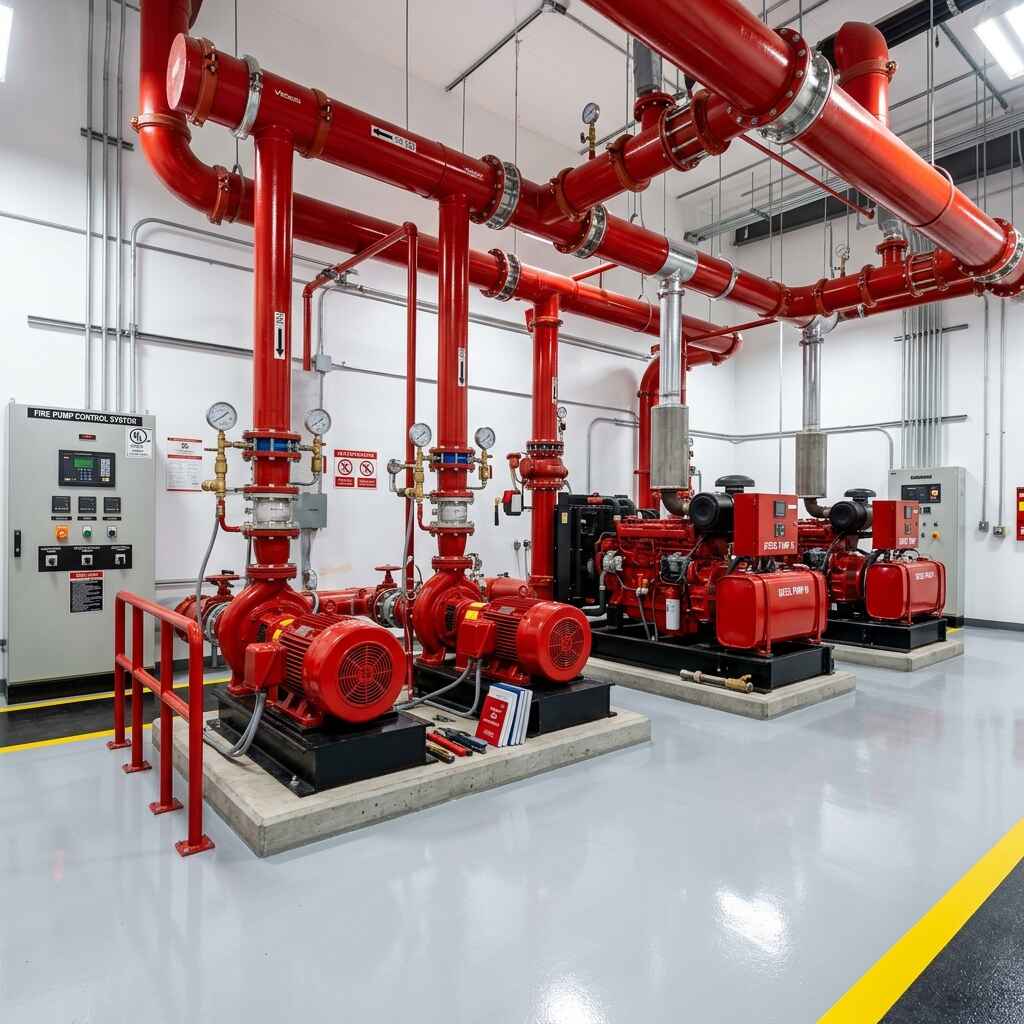

Every sprinkler system requires a reliable water supply at adequate pressure and flow. We design and install electric fire pumps, diesel backup pumps, and jockey (pressure maintenance) pumps — all to NFPA 20 and DCD pump room specifications. Pump sizing is calculated based on the hydraulically most demanding sprinkler head calculation, with a 10% safety margin on both flow and pressure.

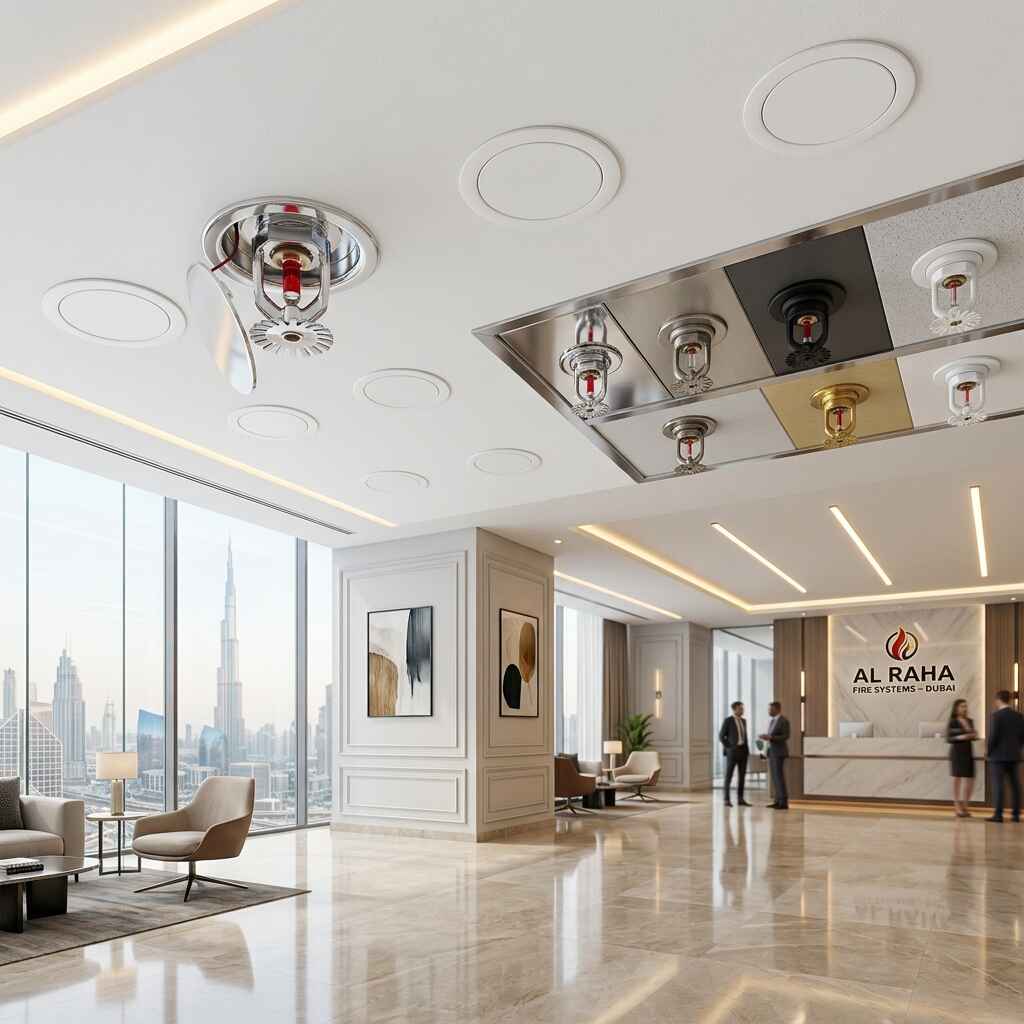

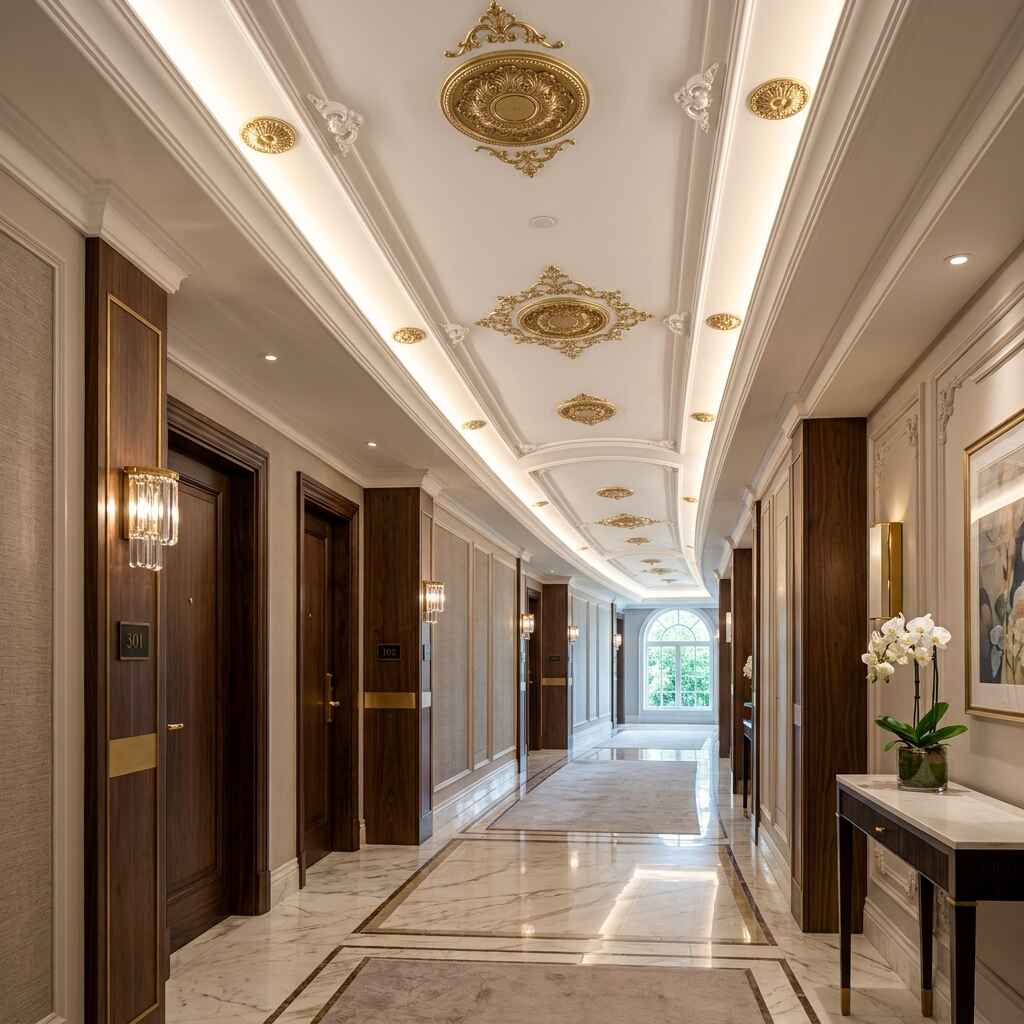

For premium residential, hotel, and retail projects, we supply flat concealed heads with cover plates matching the ceiling finish — completely invisible until a fire occurs. The cover plate melts at a lower temperature than the head itself, exposing and activating the head in sequence. Available in white, off-white, and custom RAL colours to match any interior specification — common in Dubai's luxury residential and 5-star hotel market.
Every CBS installation follows a disciplined, DCD-compliant six-stage process. No shortcuts — because a missed step means a failed inspection.
Step 1
Thorough site assessment
Step 2
Custom system blueprint
Step 3
Professional setup
Step 4
Full compliance check
Step 5
Ongoing support & AMC
| Statistic | Figure | Source |
|---|---|---|
|
Fires controlled by 1–2 sprinkler heads |
87% |
NFPA 2023
|
|
Reduction in property damage |
60% less |
NFPA statistics |
|
Reduction in fire death risk |
80% lower |
NFPA |
|
Water discharged per minute per head |
10–25 gallons |
NFPA 13 |
|
Time from activation to suppression |
Under 30 seconds |
Field data |
|
Insurance premium reduction (typical) |
10–15% lower |
UAE insurers |
|
Buildings fires needing 2+ heads |
Only 13% |
NFPA 2023 |
These aren’t marketing claims they’re decades of documented fire loss data from the world’s most respected fire safety organisation In Dubai specifically, the UAE Fire & Life Safety Code adopts NFPA statistics as the technical basis for mandatory sprinkler requirements. A building with a properly installed fire sprinkler system doesn’t just comply with the law it is statistically and measurably safer for every person inside it. The insurance industry recognises this too: many UAE insurers offer premium reductions of 10–15% for buildings with certified sprinkler systems.
Industries We Serve

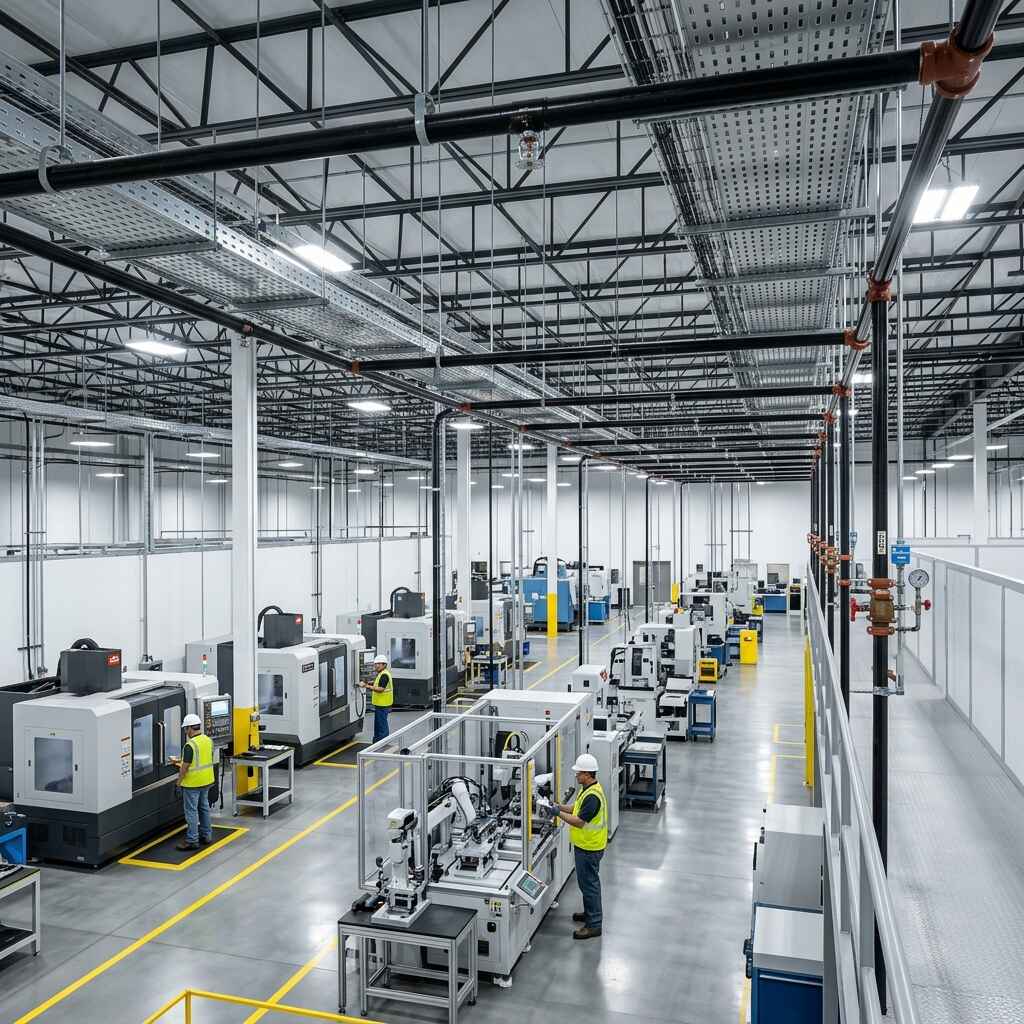

Every building, every industry, every risk profile is different. That’s why we don’t offer one-size-fits-all systems. Here’s how we protect Dubai’s most important sectors:
To provide innovative, reliable, and compliant fire safety and security solutions. As a Dubai Civil Defense-certified contractor, we specialize in fire protection systems, offering expert installation, maintenance, and high-quality fire suppression and firefighting products to ensure the safety of people and properties across the UAE.
To be the trusted leader in fire safety and security solutions, recognized for our excellence in service, cutting-edge technology, and unwavering commitment to protecting lives and assets. We aim to set industry standards for safety, reliability, and customer satisfaction in every project we undertake.
At Abdullah Fire Safety, we believe that every emergency lighting system should perform flawlessly when it matters most. A Central Battery System is more than electrical equipment. It is a life safety solution that protects occupants during emergencies and supports safe evacuation.
That is why every project we undertake is guided by three core principles: strict Dubai Civil Defence compliance, precision engineering, and uncompromising quality. From initial design and installation to testing, commissioning, and ongoing maintenance, we follow industry best practices to deliver systems that are reliable, efficient, and built for long-term performance.
Our commitment is simple: provide every client with a solution that meets regulatory requirements, minimizes operational risks, and gives complete confidence that their emergency lighting system will perform when it is needed most.
We supply and install sprinkler heads, valves, and pump sets from globally certified, DCD-listed manufacturers not the cheapest available option, but the brands proven to perform in the UAE’s high-humidity, high-temperature construction environment.
Annual Maintenance Contract (AMC)
Installing a Fire Sprinkler System is only the beginning. Dubai Civil Defence requires documented, regular testing at three intervals and a missed test is a failed inspection. Our Fire Sprinkler System covers all of this automatically, so you never have to worry about compliance dates.
Our fire sprinkler system installations are priced per building based on floor area, ceiling height, system type, water supply availability, and DCD compliance requirements. One fixed installation price covers your complete project: site survey, hydraulic design, DCD design submission, material supply, full installation, hydraulic pressure test, commissioning, and DCD Completion Certificate. No hidden charges.
Why Choose Us
There are dozens of fire companies in Dubai. Here is what sets us apart specifically for fire sprinkler system work in plain terms that matter to a facilities manager or building owner.
We are a fully DCD-approved fire sprinkler system contractor in Dubai covering design, installation, testing, and AMC. Our DCD approved sprinkler designs are accepted by Dubai Civil Defence inspectors without supplementary requests, and our documentation is accepted at every DCD inspection without challenge. When your DCD commissioning inspection date arrives, we attend, present the complete documentation file, and ensure your system passes first time.
Our engineers are specifically trained to NFPA-13 the international code governing every hydraulic calculation, pipe sizing decision, and sprinkler head selection in your system. A poorly hydraulically calculated system will pass a visual inspection but may fail to deliver adequate water at the most remote head under actual fire conditions. Our hydraulic calculations are independently
reviewed by our senior engineer and stamped before every DCD submission
From the first site survey through hydraulic design, DCD design submission, material procurement, installation, hydraulic testing, commissioning, and final DCD Completion Certificate we manage every stage under one contract with one accountable team. We do not subcontract design, we do not use third-party drawing services, and we attend every DCD inspection in person.
We have designed and installed fire sprinkler systems in over 500 buildings across Dubai from 2-bedroom villas in Jumeirah to 30-storey towers in Business Bay and 50,000m² warehouses in Jebel Ali. This experience means our engineers have encountered every installation challenge, every DCD inspector requirement, and every coordination difficulty. There are no surprises on your sprinkler project.
A pipe burst at 2am or an activated head after a minor incident requires immediate expert response. Our emergency team covers all fire sprinkler emergencies across Dubai pipe isolation and emergency repair, activated head replacement, alarm valve reset, post-fire assessment, and system recommissioning 24 hours a day, 7 days a week. AMC clients receive priority 24 hour response at no extra call-out charge.
Every sprinkler system quotation we provide itemises material costs (pipes, heads, valves, pumps), labour costs (installation, hydraulic testing, commissioning), DCD submission fees, hydraulic calculation fees, and travel costs — separately and clearly. No additions after contract award. No surprise charges on site completion. Fixed price from survey to DCD Completion Certificate.
Yes. Under Dubai Civil Defence regulations and the UAE Fire & Life Safety Code, fire sprinkler systems are legally mandatory for most commercial, industrial, and residential buildings. This includes all hotels, hospitals, shopping malls, warehouses above 500m², residential buildings above three floors, and any building classified as high occupancy or high risk under the UAE Fire Code. Buildings without a DCD-approved sprinkler system cannot receive their occupancy permit or trade licence. Contact us for a free consultation to confirm the specific requirements for your building type.
Fire sprinkler installation costs depend on building size, system type, ceiling height, water supply availability, and DCD complexity. As ageneral guide: villa or apartment systems from AED 8,000–20,000; commercial office floors from AED 15,000–50,000 per floor. Warehouse ESFR systems from AED 50,000 upward depending on floor area and rack height. We provide a fixed-price itemised quotation after a free site survey contact us at +971 566 707 932 for a no-obligation assessment.
Installation timelines vary by building size. A single apartment takes 2 to 3 days. A commercial office floor takes 5–10 days. A multi-floor tower project is typically 4–12 weeks from DCD design approval to commissioning. DCD design submission and approval typically adds 2–4 weeks we factor this into all project programmes and submit at the earliest possible stage to protect your construction timeline.
A wet pipe system has water in the pipes at all times instant activation when a sprinkler head opens. A dry pipe system has pressurised air in the pipes, with water only entering after the head activates and a dry pipe valve opens, adding a 15–60 second delay. Wet pipe systems are used in standard buildings where temperatures remain above freezing. Dry pipe systems are specified for car parks, cold stores, and unheated environments where water-filled pipes would freeze or corrode
No — this is the most common misunderstanding about fire sprinklers. Sprinkler heads are activated by heat, not smoke. The glass bulb inside each head only fractures when the surrounding air temperature reaches the head’s rated activation temperature typically 57°C for standard heads. Normal cooking smoke, cigarette smoke, or steam from a shower will never activate a sprinkler head. Only a genuine fire producing significant heat at ceiling level can cause activation.
Dubai Civil Defence and NFPA 25 require fire sprinkler systems to be inspected monthly (visual), tested quarterly (functional), and fully serviced annually. Annual testing must include a fire pump performance test, inspector’s test valve flow test, internal pipe inspection and alarm valve overhaul. Our fire sprinkler AMC in Dubai covers all frequencies under one fixed annual fee including priority 24/7emergency response at no extra call-out charge.
A damaged sprinkler head must be replaced immediately by a certified engineer never by untrained maintenance staff. A damaged head can either fail to activate during a fire (if the bulb is cracked) or discharge water continuously (if damaged mechanically). We stock replacement heads for all major brands including Tyco, Viking, and Victaulic, and can attend for emergency head replacement across Dubai same-day or next-day depending on the head type and location.
Yes. Retrofitting fire sprinkler systems into existing buildings is one of our most common services in Dubai. We design around existing ceilings, structural elements, and MEP services using CPVC plastic pipe in ceiling voids to reduce disruption and core drilling through structural slabs to route between floors. Retrofit projects take longer than new-build installations but meet identical DCD requirements and system performance standards.
We supply and install DCD-listed and NFPA 13-listed sprinkler heads from Tyco (Johnson Controls), Viking, Victaulic, and Reliable Automatic Sprinkler. All heads arrive with manufacturer certificates. We do not install uncertified or unbranded sprinkler heads. All components are included in our DCD material submission package with full traceability from manufacture to installation.
Yes. ESFR (Early Suppression Fast Response) sprinkler systems for warehouses with high-piled storage are one of our specialist services. ESFR installations require specific hydraulic calculations, dedicated pump sizing for higher flow rates, and individual DCD design approval different in scope and complexity from standard wet pipe installations. We have installed ESFR systems in logistics warehouses across JAFZA, DIC, and DIP. Contact us for a free warehouse survey and ESFR system proposal.
Don’t wait for a failed DCD inspection, a denied occupancy permit, or an actual fire to discover your building is unprotected. Let our NFPA 13-certified engineers survey your building and deliver a fixed-price fire sprinkler installation from design through to DCD Completion Certificate.
